E5 R-SERIES ELEVATORS

The COE E5 ELEVATOR is used together with COE BANKOUTS to load harvested crops into trailers. With the self-propelled option, the elevator can set up and move without the assistance of the bank out.



Operators Platform

Self-propelled Option

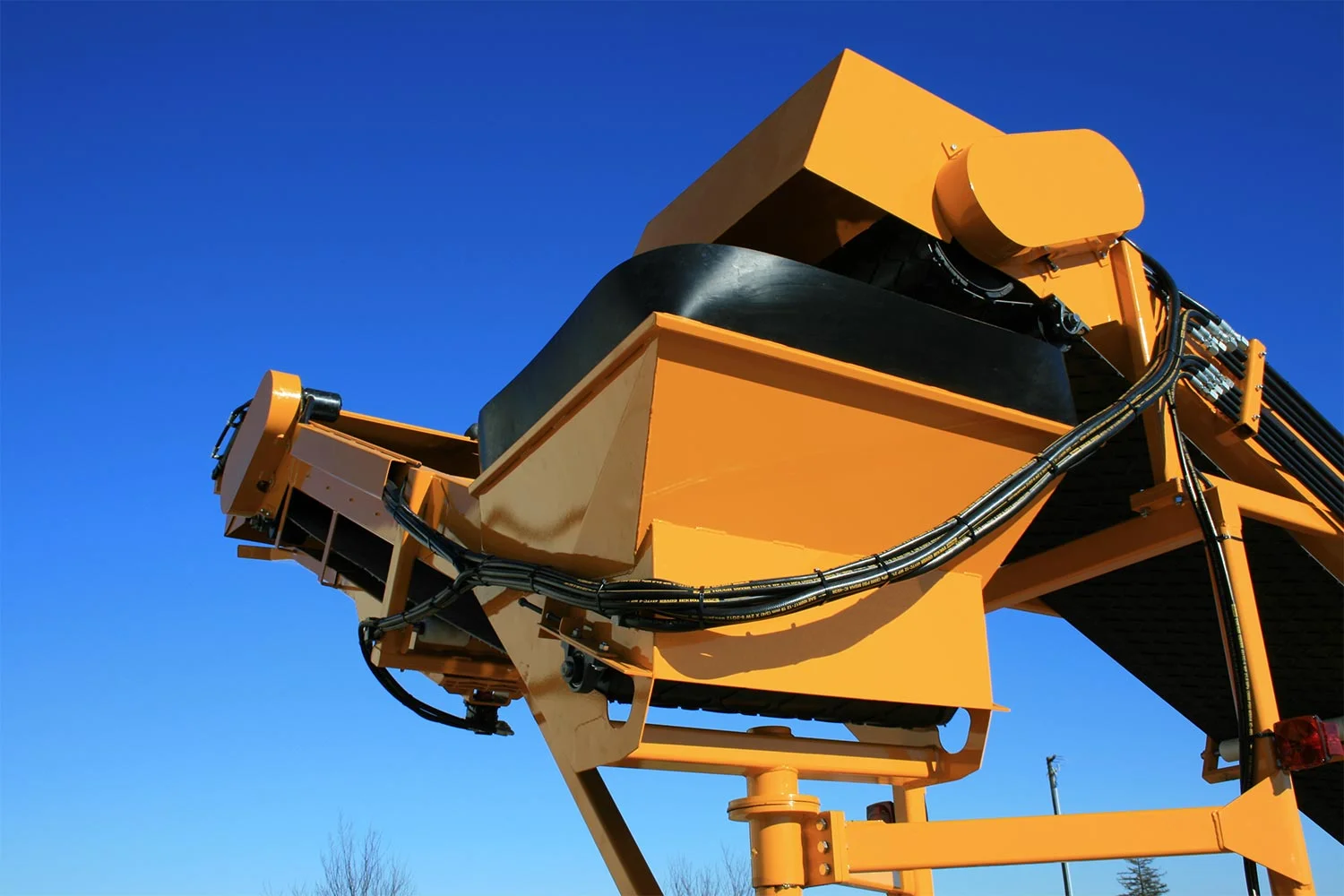

90 Degree Top Section

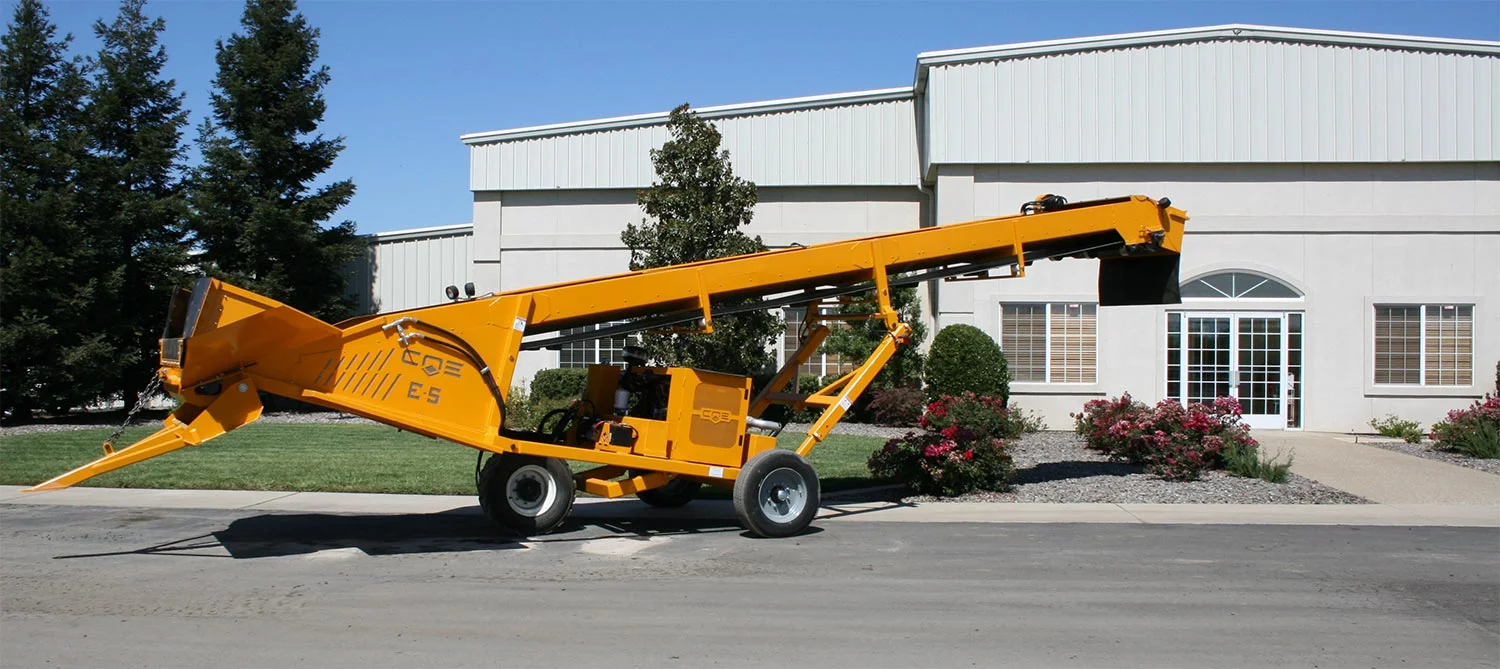

Single Belt with Hydraulic Fold

CONFIGURATIONS AVAILABLE

  • Standard single belt high side

  • Low side trailer with 90 degree top section

  • High side trailer with 90 or 180 degree top

    section

SPECIFICATIONS & FEATURES

  • John Deere 4045 74HP IT 4 engine

  • High debris radiator

  • Oil cooler for hydraulic circuit

  • Dual dry element air cleaner w/ pre cleaner

  • 36 inch wide Z top belt

  • Flanged V section frame

  • Gear reduced drive

  • LED lights package

  • Leaf spring suspension (with air bags on magnum option)

  • Heavy duty axles

  • Dual mechanical joystick controls

  • Gauge package (water temperature, oil pressure & volt meter) (monitor on R-Series model)

  • COE welded cylinders

  • Heavy duty modular construction

  • Towing brake lights

  • Tow wire harness & storage compartment

  • Powder coated finish

OPTIONS

  • John Deere 4045 74HP TIER 4 final with R-Series upgrade

  • MAGNUM R-Series (48 inch wide belts with high power drive system w/ ground drive, single joystick control) Low side only

  • Self propelled drive system (standard magnum)

  • 180 degree top section (high side model)

  • Trash blower (standard on low side model)

  • Cleats vulcanized to belt

  • Hydraulic coupling system (to bankout)

  • Trash chain top section (walnuts & pecans)

  • Remote elevator controls
