R10 R-SERIES HIGH CAPACITY NUT BANKOUT




The COE R10 BANKOUT high capacity design is used to support pistachio harvester equipment in the field by unloading and then transferring product to trailers by use of an elevator. Its sleek profile allows it to move easily in tight orchard plantings.

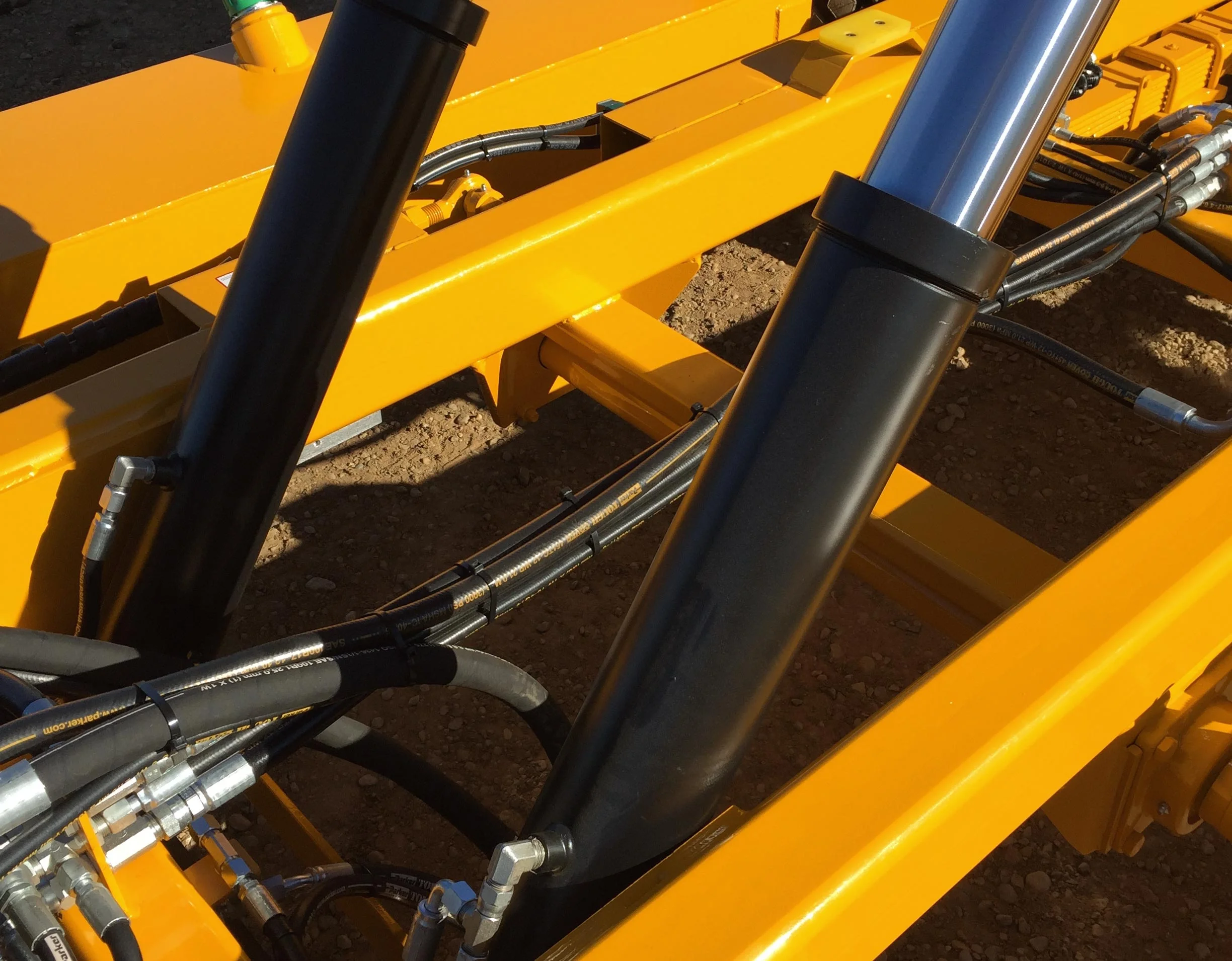

Heavy Duty Telescopic Cylinders


VARIOSTEER Selector

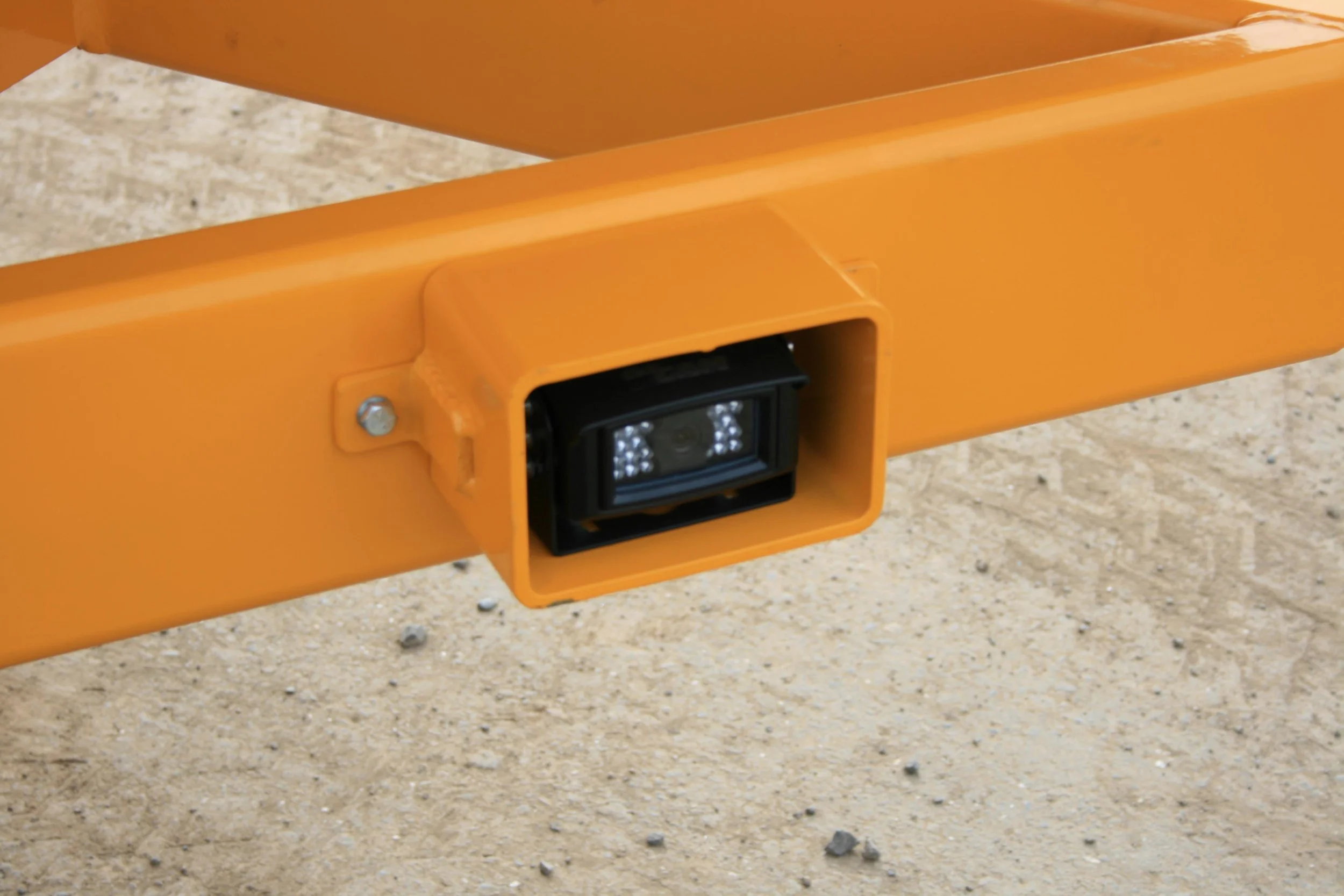

Surround View Cameras

SPECIFICATIONS & FEATURES

  • John Deere 4045 74HP TIER 4 final engine

  • POWERMAX system

  • VARIOSTEER selectable steering with automatic rear wheel centering

  • INCONTROL display with adjustments

  • High debris radiator & oil cooler

  • Rexroth hydrostatic pump & variable motors

  • Auburn Gear planetary 19-1 hubs with automatic shifting 4WD

  • Parking brake (fail safe design)

  • COE 33/16.5 x 16.5 12 ply tires

  • Dual dry element air cleaner w/ pre cleaner

  • LED lights package

  • Safety flashers

  • 6 leaf spring suspension

  • Air Bag overrides

  • Heavy duty wheel motor axles

  • Low profile tank 550 cu ft capacity

  • High capacity augers

  • COE welded cylinders

  • Heavy duty 3 stage telescopic cylinders

  • Single joystick control with multifunction features

  • Forward & Reverse foot selector

  • Seat with adjustable suspension

  • Heavy duty construction

  • High capacity fuel reservoir

  • Powder coated finish

OPTIONS

  • John Deere 139HP T4 final engine w/reversible cleaning fan (R10R+)

  • Air Conditioned cab w/ filtered pressurizer

  • Tier 3 engines (available for exports to emissions compliant areas)

  • Surround view cameras
